Superscalar Out-of-Order RISC-V Processor

This is IllOOM, my Out-of-Order processor that I designed and implemented with my team as part of UIUC's ECE 411. Some noteable features:

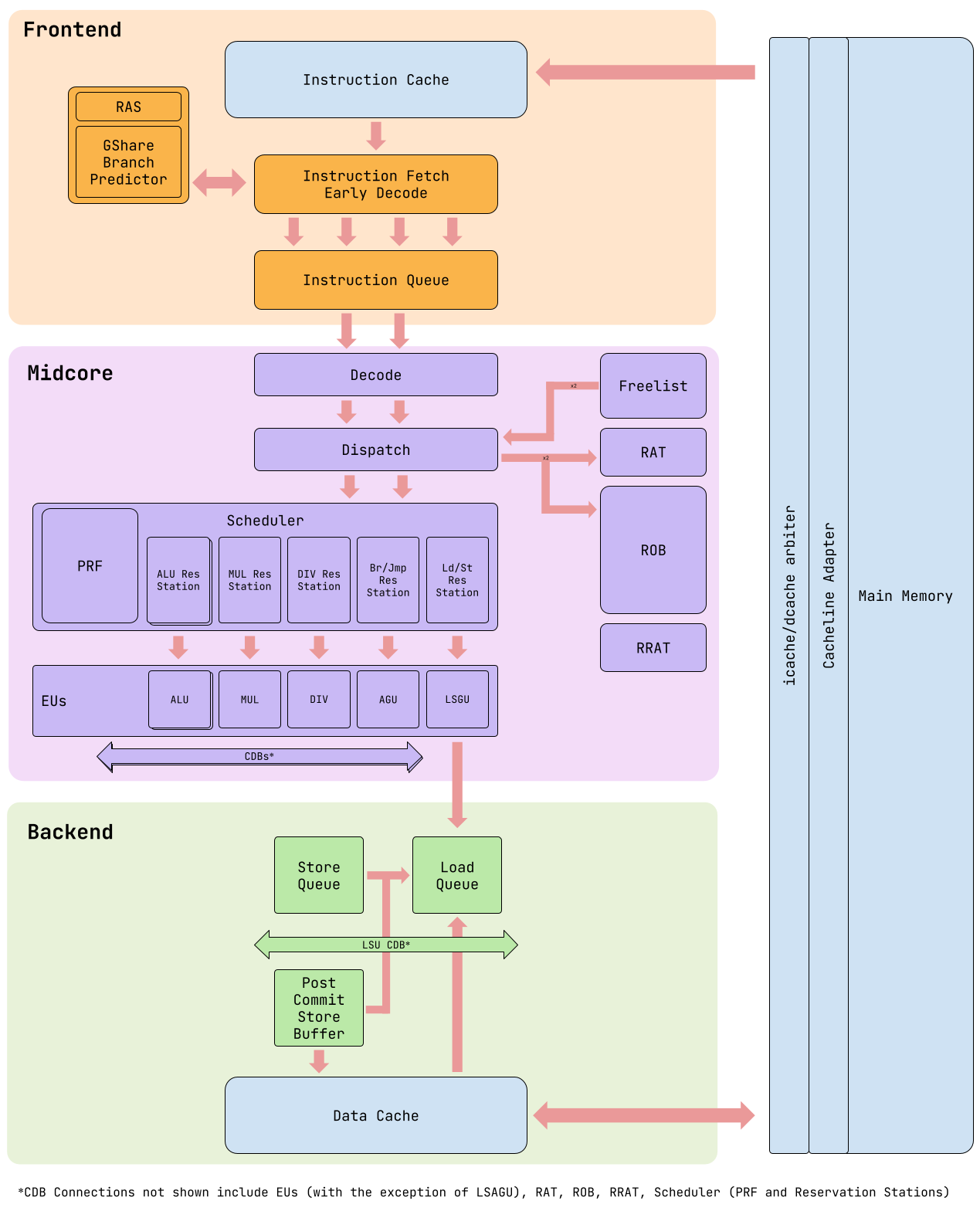

4-way frontend, 2-way dispatch/commit RV32IM processor using Explicit Register Renaming architecture
Advanced features included a GShare branch predictor, pipelined L1 instruction cache, split LSQ with forwarding, writethrough post-commit store buffer, N-way superscalar frontend parameterizability, and more
Synthesized core at 614 MHz on FreePDK’s 45nm process node, achieving an IPC of 1.587 on the compression benchmark
Ranked 5th out of 34 teams in performance competition across 11 benchmarks

Report
